Request a quote below to customise your curtain
Curtain Installation Measurement Guide
-
Measure the Width (Opening A):
Use a tape measure to find the width of the opening. Measure at the top, middle, and bottom to determine the widest point.
-
Measure the Height (Opening B):
Measure from the top of the intended mounting area to the bottom of the opening. Take multiple height measurements to ensure accuracy.
-
Review Specifications:
Consult the PVC/Overlap specifications table to confirm the recommended usage for your curtain type.
-
Determine Fixing Type:
Decide whether the curtain will be installed as a face fix (attached to the wall) or under lintel (mounted on the ceiling or top of the opening). -
Need Assistance?:
If you have any questions or need clarification on measurements or specifications, please feel free to contact us at 01282 277 710 for support. Make sure to double-check all measurements to ensure a perfect fit!
Overlap Instructions
-
Partial Overlap - Internal (Light Duty)
Recommended Strip Thickness: 1.7mm to 2mm
-
Overlap Specifications:
200mm Wide: 1 hook on each side, 35% overlap
300mm Wide: 1 hook on each side, 25% overlap
400mm Wide: 2 hooks on each side, 55% overlap
-
Maximum Overlap - External (Heavy Duty)
Recommended Strip Thickness: 3mm to 4mm
-
Overlap Specifications:
200mm Wide: 2 hooks on each side, 78% overlap
300mm Wide: 3 hooks on each side, 78% overlap
300mm Wide: 3 hooks on each side, 78% overlap
Availability: In Stock
-
Delivery Free Shipping On All UK Orders
-
Satisfaction Guaranteed.
-
Secure Payments
-
Need help? Call Us 01282 277 710 or email sales@questorm.co.uk
Description

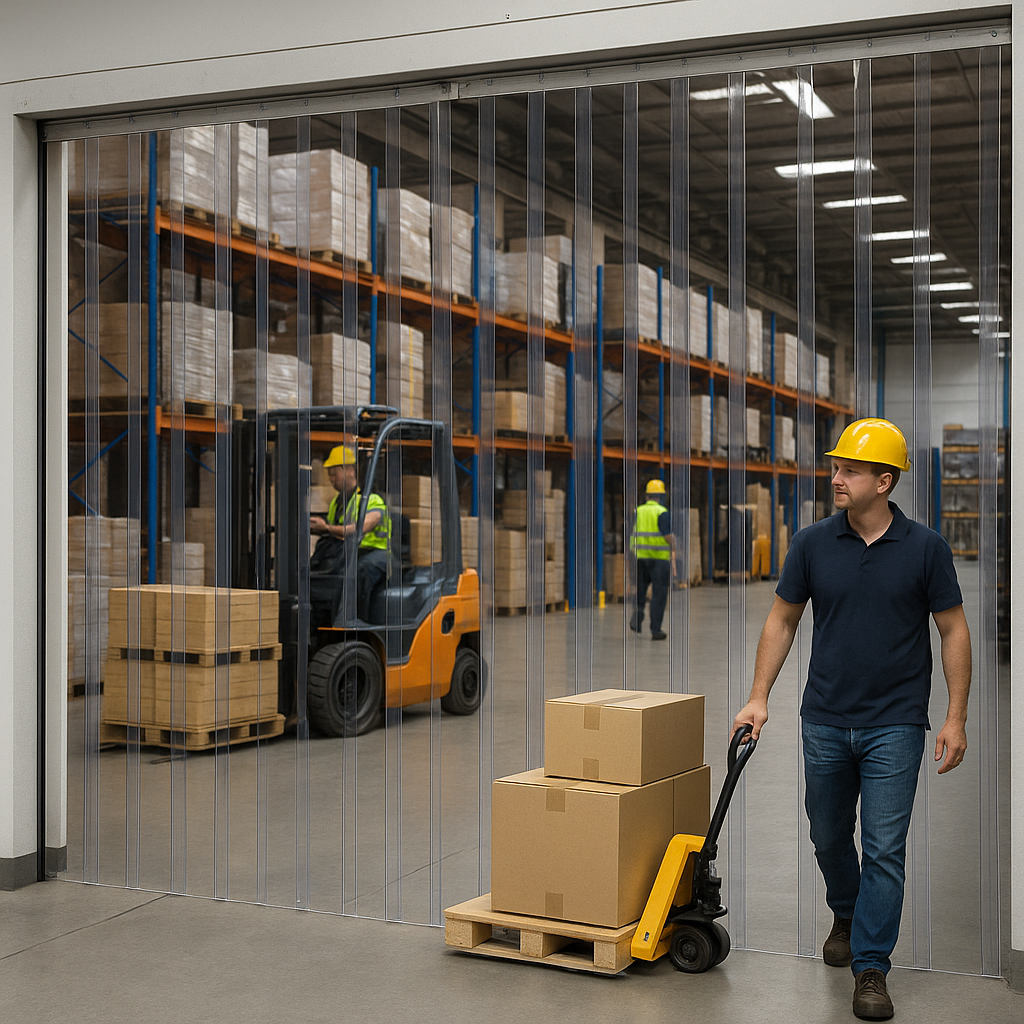

Improve airflow, cleanliness, and space separation with durable medium-duty strips. A smart solution for light to moderate traffic areas needing flexible access control.
Key Benefits
-
Great for managing temperature, dust, and noise
-
Ideal for moderate foot traffic and occasional trolleys
-
Custom-fit for better performance and easy installation
-
Enhances energy savings in partitioned zones
-
Low-maintenance and easily replaceable
Product Specifications
-
Product Type: Medium Duty PVC Strip Curtains
-
Brand: Questorm
-
Key Features: Versatile, durable, lightweight, easy to install
-
Color: Clear (other colors optional)
-
Size(s): Custom-cut width and length
-
Use Case: Workshops, light industrial zones, warehouses, commercial kitchens, indoor partitions
-
Material: Flexible medium-grade PVC
-
Mounting Options: Hook-on or bolt-on rails
