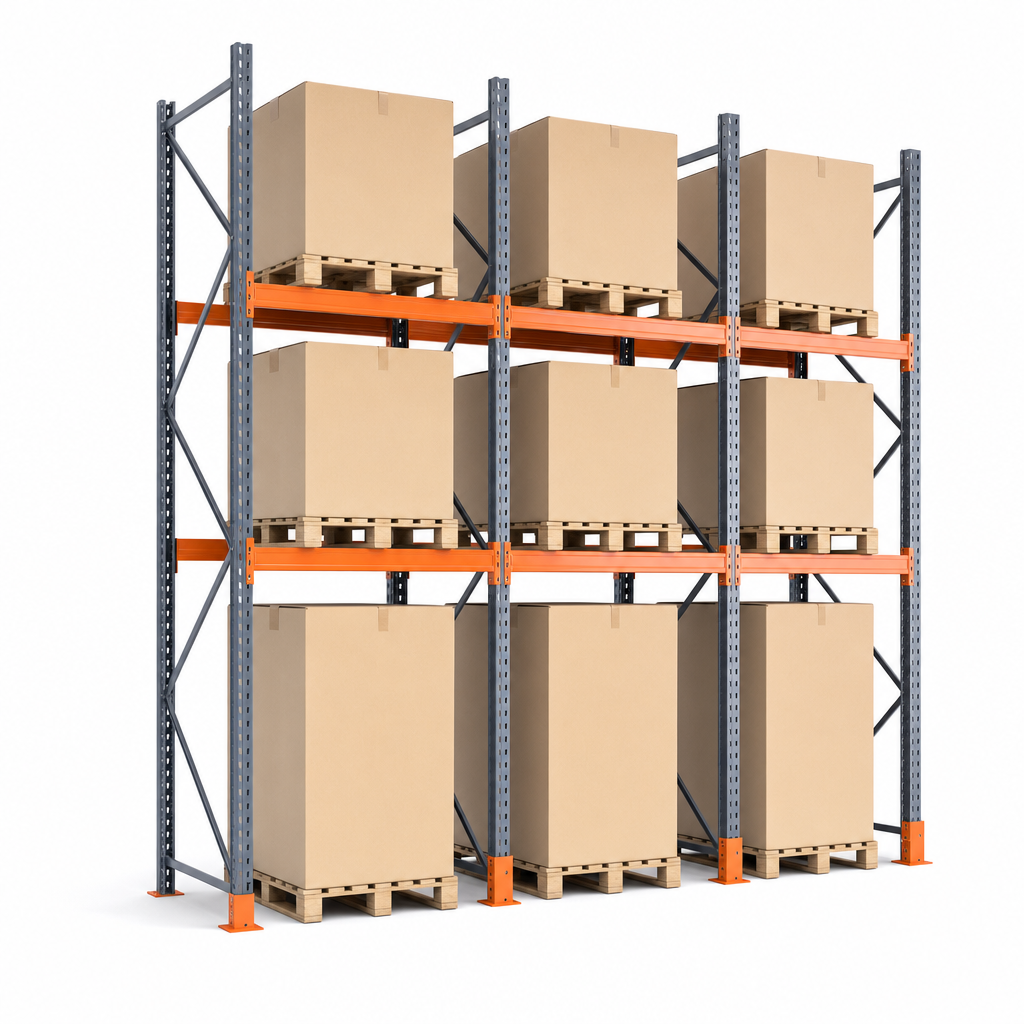

Maximise pallet storage quickly and efficiently with these 4000mm high pallet racking complete kits. Supplied as starter and add-on bays, they provide a ready-made solution for organising palletised goods.
Designed for standard Euro pallets, each kit includes frames, beams and levels configured to hold a specific number of pallets. Simply choose the width and capacity that best suit your warehouse layout and throughput.
Product Features
- Complete pallet racking kits with starter and add-on bays for straightforward installation.
- 4000mm high frames ideal for medium-height warehouse and industrial storage.
- Configured to store standard Euro pallets measuring 1200mm x 800mm.
- Choice of 2 or 3 beam levels per bay to match your storage density needs.
- Multiple bay widths available to create runs from just under 6m up to over 11m.
- All kits include the required frames and beams to achieve the stated pallet capacity.
- 1100mm deep frames for secure support of pallet loads.
Key Specifications
| Overall height | 4000 mm |
|---|---|
| Available run widths | Approx. 5717 mm, 8503 mm, 11289 mm |
| Depth | 1100 mm |
| Pallet compatibility | For pallets 1200 mm long x 800 mm wide (Euro type) |
| Number of pallet positions | Options including 18, 24, 27, 36, 48 pallets (and others in range) |
| Component type | Starter units with 1–3 add-on units, depending on kit |
| Number of levels | 2 or 3 levels, depending on kit |
| Number of beams | From 8 up to 24 beams per kit |
| Number of frames | From 3 up to 5 frames per kit |
| Price range | £1728.00 – £4605.60 (depending on configuration) |

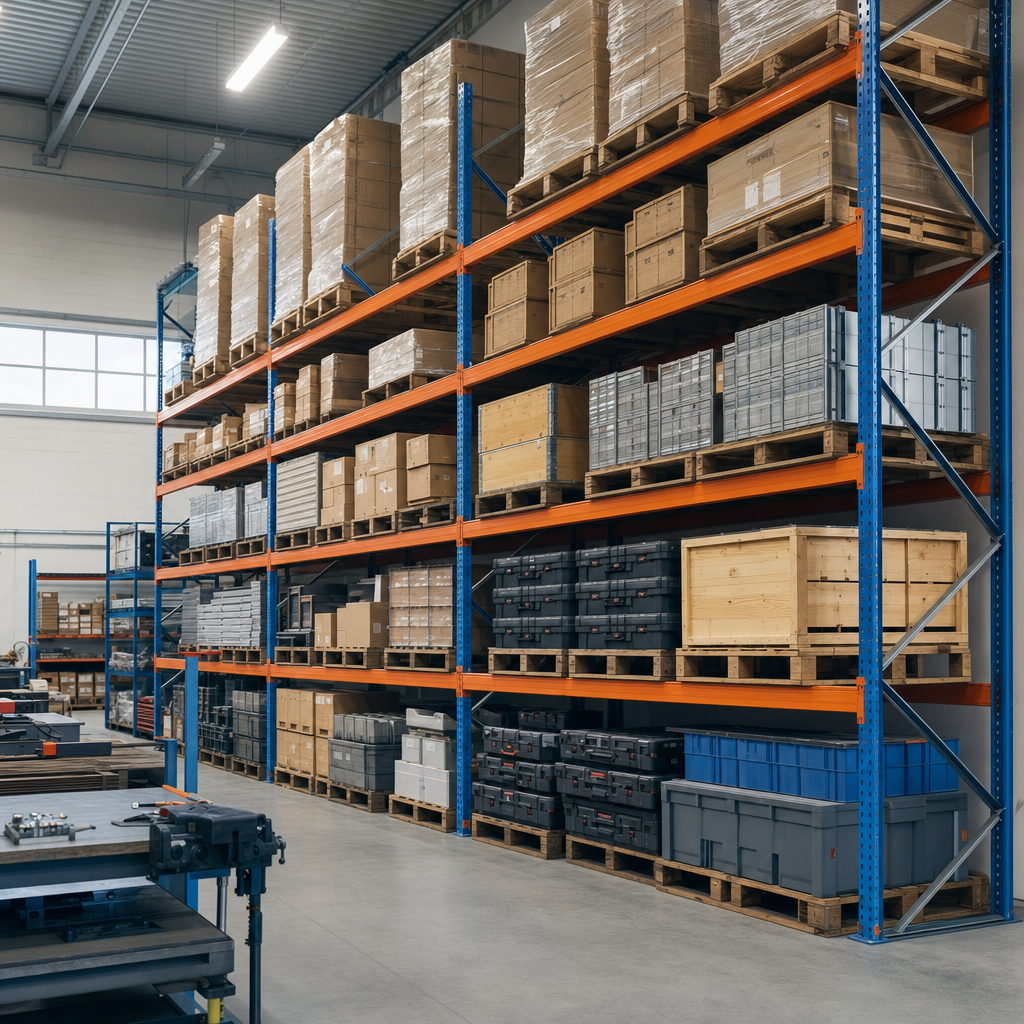

Applications
- Warehouse pallet racking for general goods, cartons and bulk items.
- Manufacturing and production areas requiring organised pallet storage.
- Distribution centres and logistics hubs handling Euro pallets.
- Stockrooms and spare parts stores needing high-capacity pallet locations.
- Cold stores or industrial environments where vertical space must be optimised.
Frequently Asked Questions
What is included in each pallet racking complete kit?
Each kit includes the uprights (frames) and horizontal beams needed to create the specified number of levels and pallet positions. The kits are supplied as a combination of one starter bay plus the appropriate number of add-on bays to achieve the stated total width and capacity.
Which pallets are these racking kits designed to store?
These kits are designed for standard Euro pallets measuring approximately 1200mm in length and 800mm in width. The frame depth of 1100mm provides suitable support for pallets of this size.
How do I choose between 2-level and 3-level configurations?
Choose a 2-level kit if you handle taller pallet loads or need more vertical clearance for handling equipment. Select a 3-level kit where pallet loads are lower in height and increased storage density is the priority, as this configuration provides more pallet positions within the same overall height.
