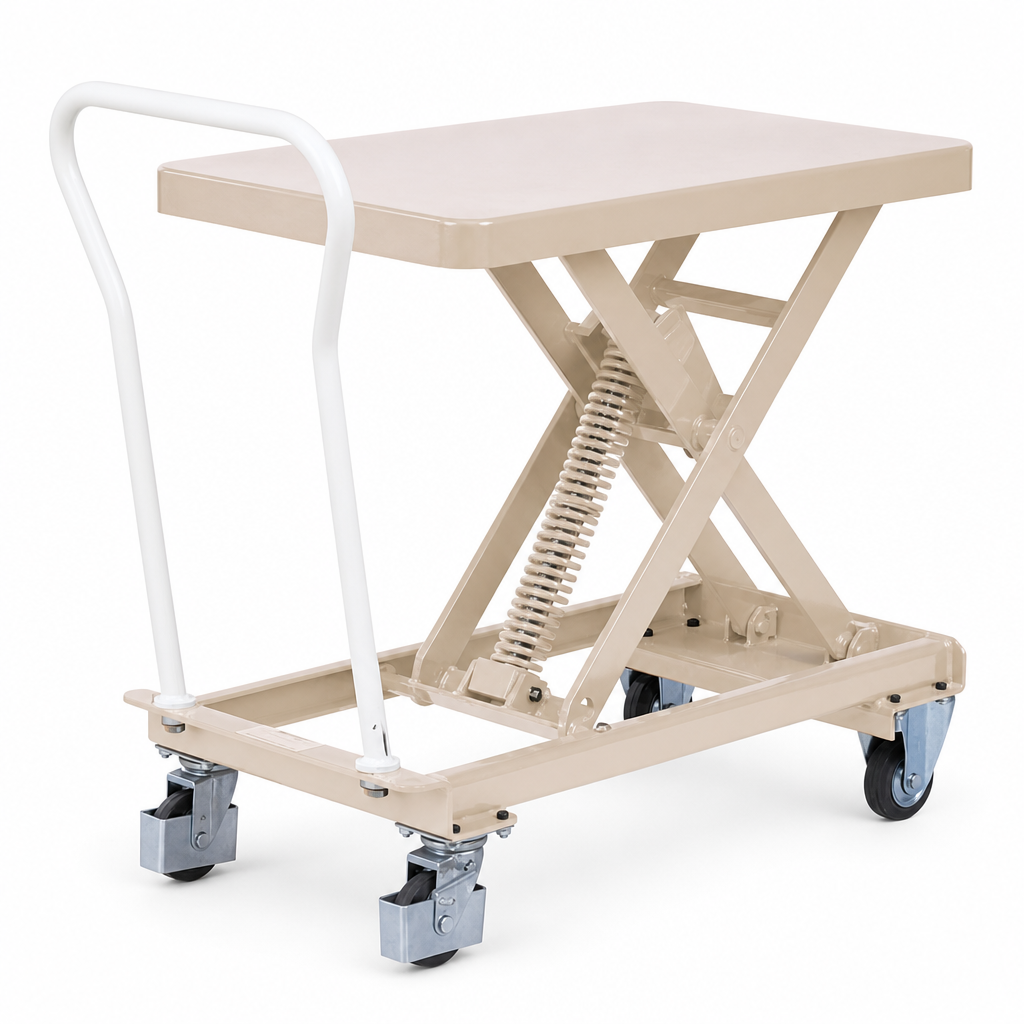

This constant level mobile lift table is designed to keep working heights comfortable and consistent during loading and unloading tasks. As the load changes, the platform height adjusts to maintain an ergonomic picking level.
Ideal for production lines, packing areas and order fulfilment zones, it helps reduce operator strain while improving handling efficiency for lighter goods up to 400 kg maximum load capacity.
Product Features
- Self-levelling platform maintains a constant working height as load changes.
- Mobile design with castors for easy positioning around the workspace.
- Multiple capacities from 100 kg to 400 kg to suit a range of applications.
- Compact base widths from 450 mm to 518 mm for use in tighter areas.
- Choice of rubber or polyurethane wheels for different floor conditions.
- Adjustable lift range with minimum heights from 265 mm to 370 mm.
- Spring-assisted mechanism with 1 or 2 springs depending on model.
Key Specifications
| Overall width (mm) | Shelf width (mm) | Min. load capacity (kg) | Max. load (kg) | Overall length (mm) | Overall height (mm) | Min. lift height (mm) | Max. lift height (mm) | Shelf length (mm) | Wheel tyre | Wheel diameter (mm) | No. of springs | Base width (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 500 | 500 | 80 | 210 | 1006 | 895 | 350 | 770 | 813 | Rubber | 100 | 1 | 500 |
| 518 | 518 | 100 | 400 | 1191 | 930 | 370 | 790 | 1010 | Polyurethane | 125 | 2 | 518 |
| 450 | 450 | 30 | 100 | 844 | 793 | 265 | 662 | 700 | Rubber | 100 | 1 | 450 |
Applications
- Loading and unloading pallets or stillages at a constant working height.
- Packing, assembly and kitting operations in warehouses and workshops.
- Order picking stations in distribution centres and fulfilment hubs.
- Production lines where component heights need to remain ergonomic.
- General material handling in manufacturing, engineering and logistics.
Frequently Asked Questions
How do I choose the right capacity for this mobile lift table?
Select a model where the maximum load rating exceeds the heaviest load you expect to handle, and ensure the minimum load capacity suits your typical load range so the self-levelling function works effectively.
What is the difference between rubber and polyurethane wheels?
Rubber wheels offer good grip and are suitable for general industrial floors, while polyurethane wheels provide lower rolling resistance and are often preferred for smoother surfaces or heavier loads.
Can this constant level lift table be moved while loaded?
The unit is mobile, but movement with a load should follow your site risk assessment and handling procedures. Always ensure the route is clear, the floor is suitable and the load is stable before moving.
