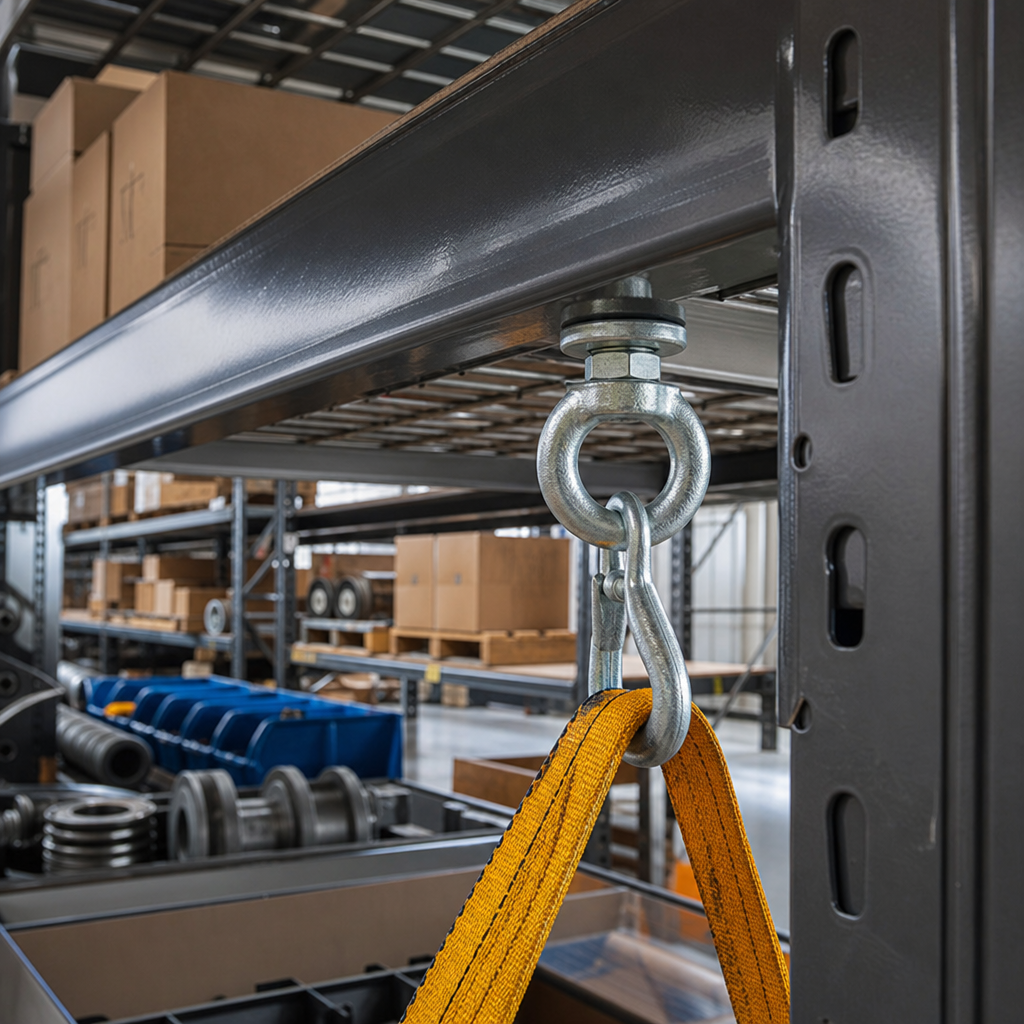

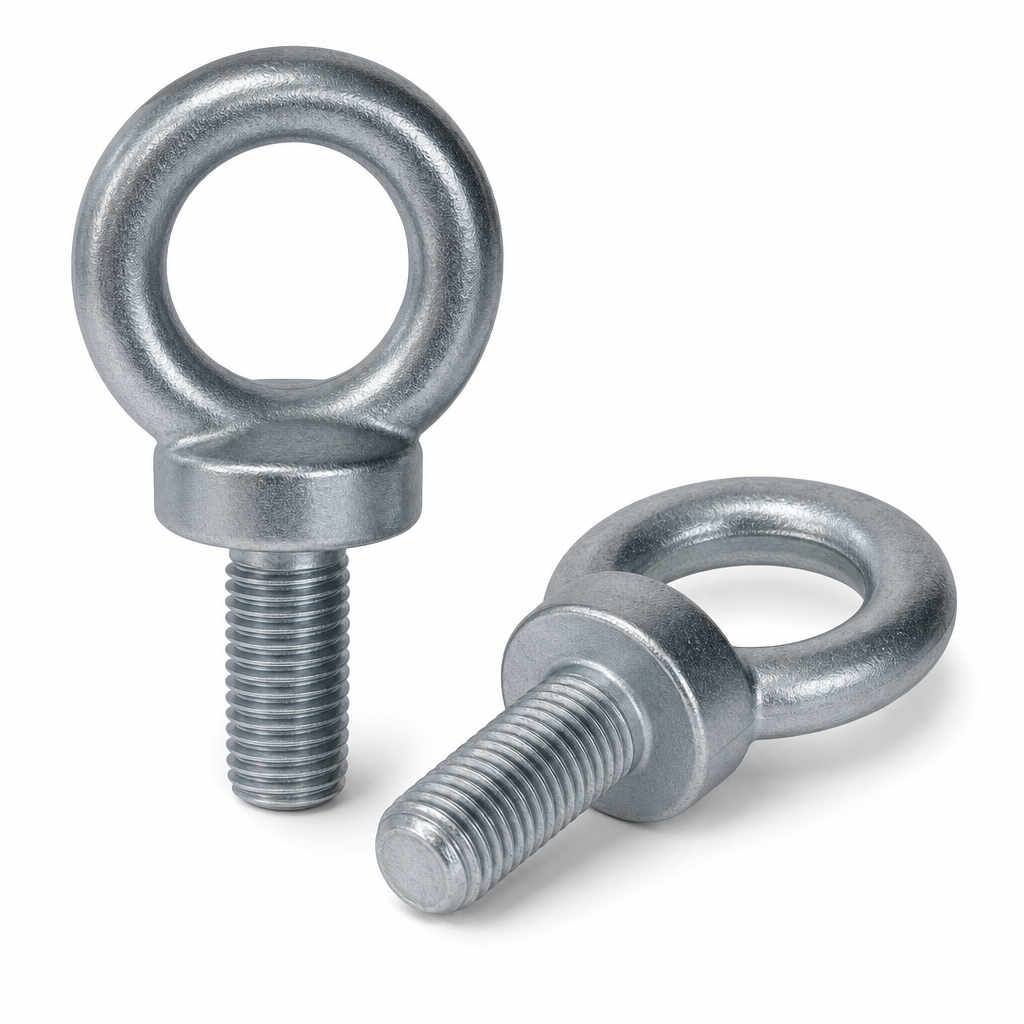

These drop forged collared eye bolts provide a secure lifting point for a wide range of heavy duty handling tasks. Manufactured for reliable performance, they are suitable for use with hoists, slings and other lifting accessories.
Available in multiple sizes and load capacities up to 2 tonnes, each eye bolt features a threaded shank and integral collar for stable seating against the load. Ideal for workshops, warehouses and industrial maintenance environments.
Product Features
- Drop forged construction for high strength and dependable lifting performance
- Collared design helps distribute the load and improves seating on the contact surface
- Multiple load capacities from 0.32 t to 2 t to suit different lifting tasks
- Threaded screw diameters from 12 mm to 24 mm for versatile installation
- Compact overall heights for use where space around the lifting point is restricted
- Clearly defined internal eye widths for easy selection with compatible hooks and shackles
- Suitable for permanent or temporary lifting points on machinery, structures and fixtures
Key Specifications
| Internal width (mm) | O/A height (mm) | Load capacity (t) | Screw diameter (mm) | Rod length (mm) | Configuration |
|---|---|---|---|---|---|
| 15 | 9 | 0.32 | 12 | 18 | Collared eye bolt |
| 20 | 12 | 0.63 | 16 | 22 | Collared eye bolt |
| 24 | 14 | 1.0 | 18 | 28 | Collared eye bolt |
| 27 | 16 | 1.25 | 20 | 32 | Collared eye bolt |
| 30 | 18 | 1.6 | 22 | 35 | Collared eye bolt |
| 39 | 21 | 2.0 | 24 | 40 | Collared eye bolt |
Applications
- Creating lifting points on machinery, motors and plant equipment
- Securing loads for hoisting in workshops, factories and warehouses
- Use with slings, shackles and hooks for rigging and material handling tasks
- Temporary attachment points for maintenance, inspection and repair operations
- Fixing to structural steelwork or frames for controlled lifting and positioning
Frequently Asked Questions
How do I choose the correct eye bolt size and capacity?
Select an eye bolt with a load capacity that exceeds the maximum load you plan to lift, and ensure the thread size and rod length are compatible with the material you are fixing into. The internal width must also suit the hooks or shackles being used.
Can these eye bolts be used for angled lifts?
These collared eye bolts are primarily intended for straight, in-line lifting. If lifts at an angle are required, you should follow relevant lifting guidelines and, where necessary, choose fittings specifically designed and rated for angular loading.
Are these eye bolts suitable for permanent installation?
Yes, they can be installed permanently on equipment or structures, provided they are fitted correctly into suitably prepared threaded holes or with appropriate nuts and washers. Regular inspection is essential to check for wear, damage or corrosion before use.
