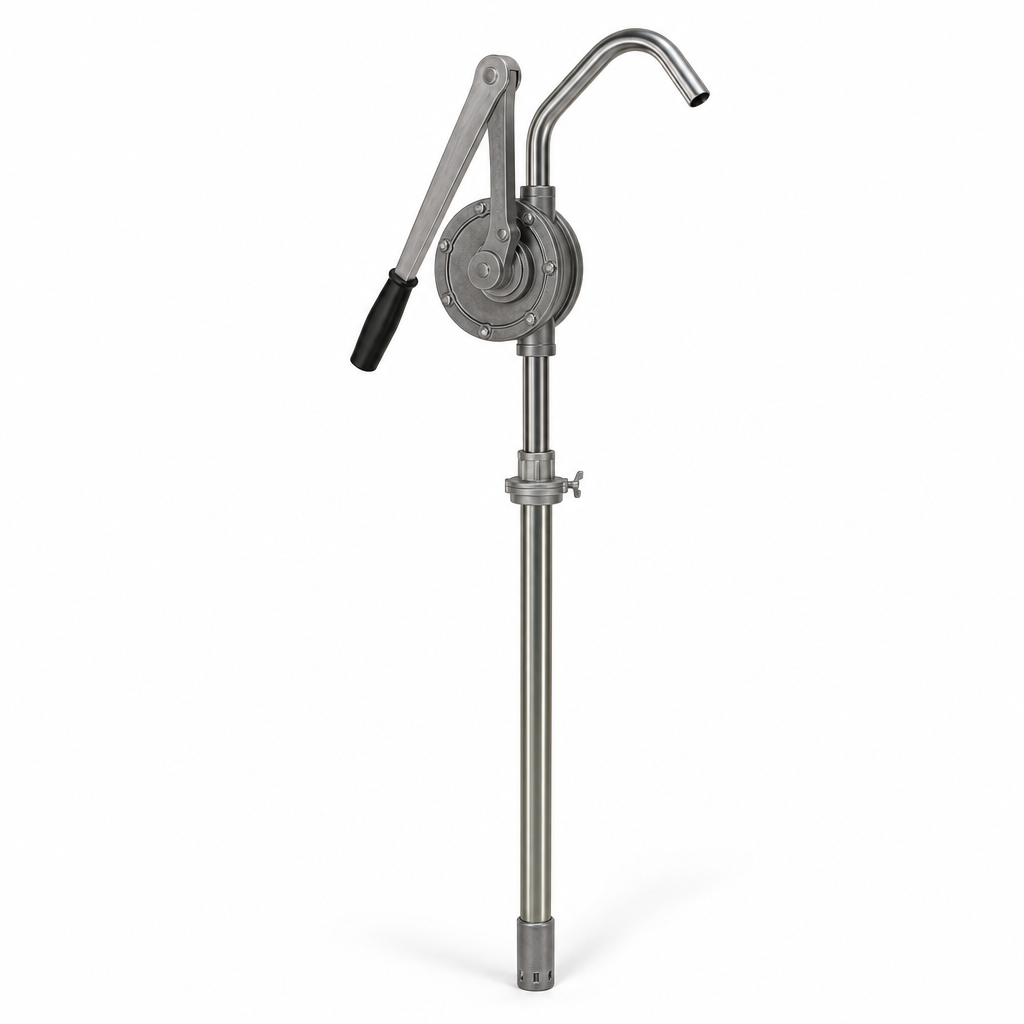

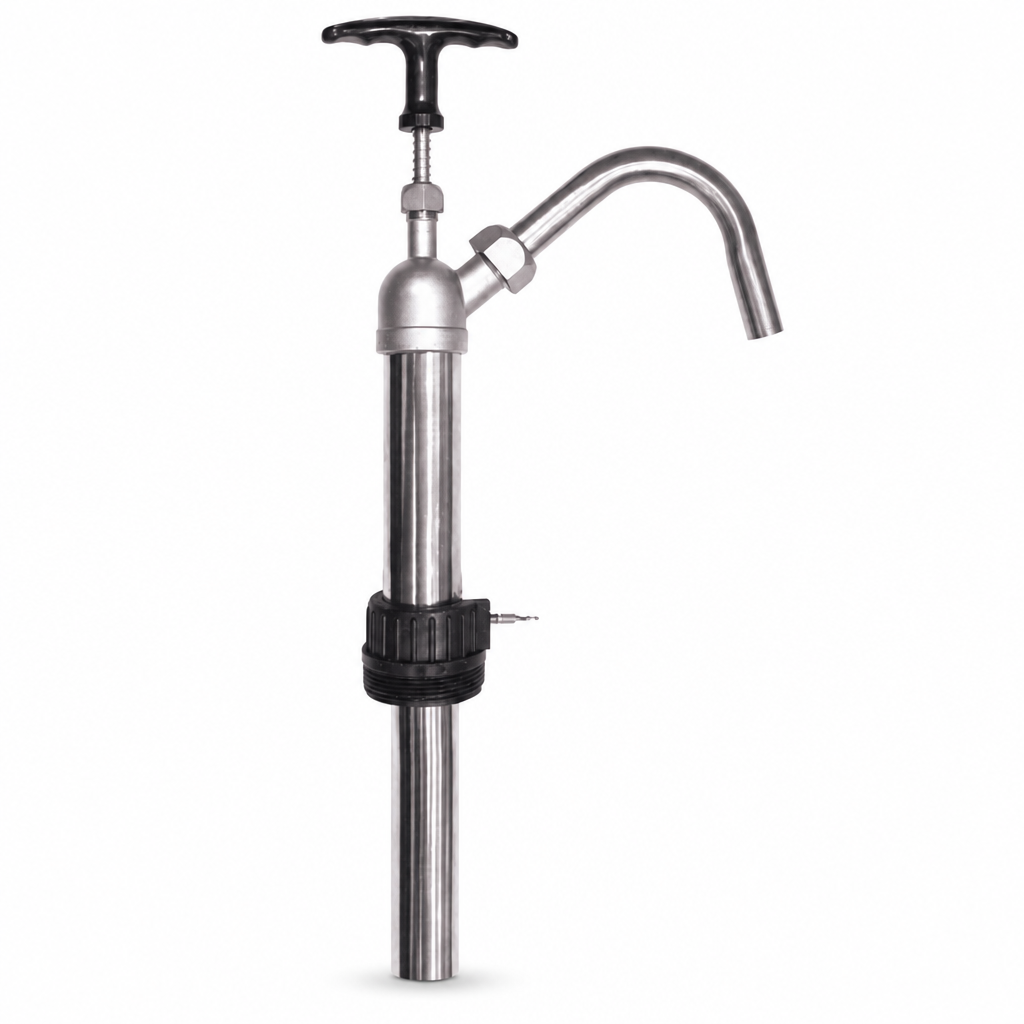

Transfer liquids safely and efficiently with this versatile hand lever drum pump, designed for use with standard 60–220 L drums. It delivers a consistent flow rate per stroke, helping you decant oils, chemicals and other liquids with control and minimal waste.
Two configurations are available to suit different media: one for non-corrosive liquids and oils, and another with stainless steel components for corrosive and chemical liquids. Both options feature an extended immersion tube for deep drum access and secure threaded connections.
Product Features
- Manual hand lever action provides controlled dispensing without the need for power
- Choice of versions for non-corrosive liquids, oils, or corrosive and chemical liquids
- Robust immersion tubes in aluminium or stainless steel for durability and chemical resistance
- Optimised flow rate per movement for efficient yet accurate filling
- Compatible with 60–220 L drums via threaded base connections
- Clearly defined spout and base sizes for easy integration with existing drum fittings
- Seal materials matched to the liquid type to help reduce leaks and extend service life
Key Specifications
| Type of product | Immersion tube length (mm) | Configuration | Flow rate per movement (L) | Seal material | Immersion tube material | Spout size | Base size |
|---|---|---|---|---|---|---|---|
| Drum pump for corrosive and chemical liquids | 860 | For corrosive and chemical liquids | 0.65 | Stainless steel | Stainless steel | 3/4" (19.05 mm) | 1–1/2" (12.7/25.4 mm) |
| Drum pump for non-corrosive liquids and oils | 900 | For non-corrosive liquids and oils | 0.3 | Polyethylene | Aluminium | 20 mm | 32 mm |
Applications

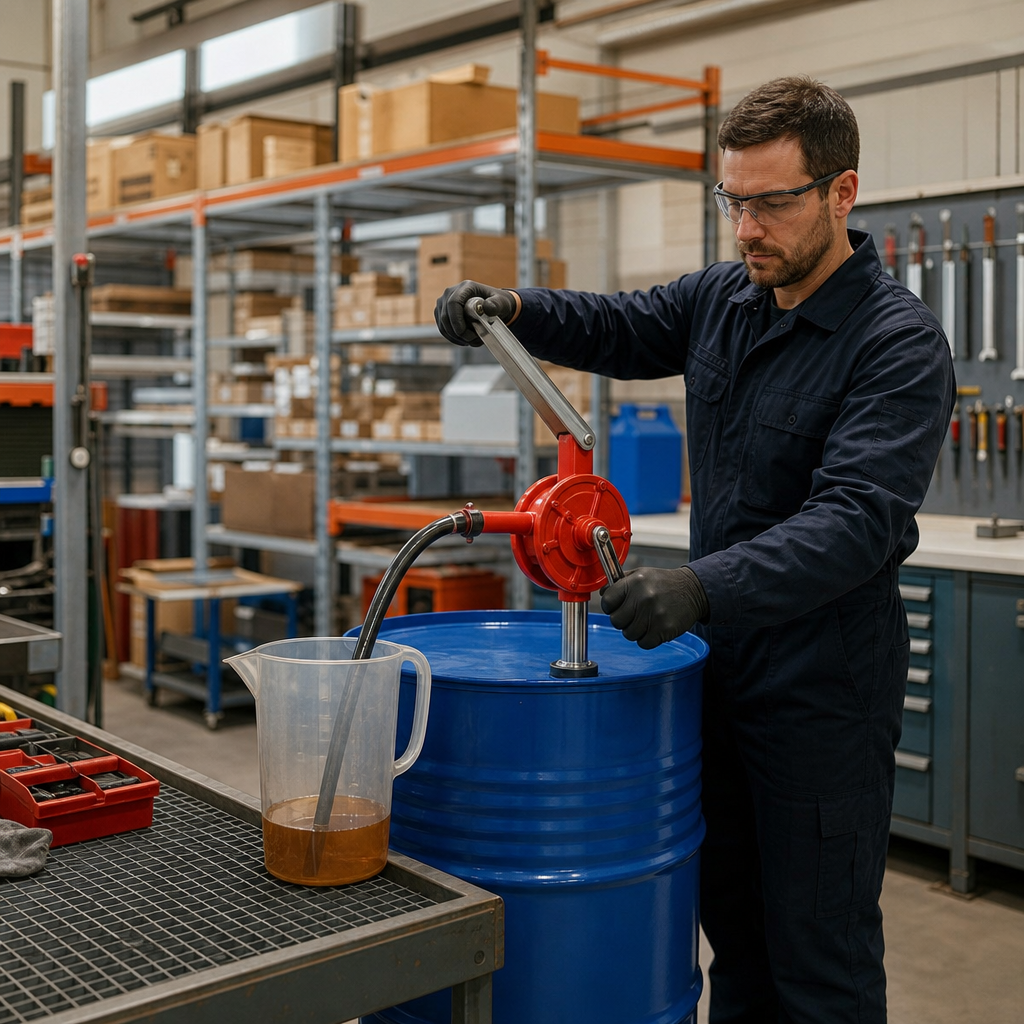

- Dispensing non-corrosive oils and lubricants from 60–220 L drums in workshops and garages
- Transferring corrosive and chemical liquids in laboratories, process plants and maintenance areas
- Decanting bulk liquids into smaller containers for production or cleaning tasks
- Controlled filling of machinery, tanks or reservoirs where power-free operation is preferred
- Backup or emergency liquid transfer when electric pumps are unavailable or unsuitable
Frequently Asked Questions
Which version of the hand lever drum pump should I choose for my application?
Select the non-corrosive liquids and oils version for use with standard oils, lubricants and similar media. For acids, aggressive chemicals or other corrosive liquids, choose the version with stainless steel seals and immersion tube for improved chemical resistance.
Is this drum pump suitable for all 60–220 litre drums?
The pump is designed for typical 60–220 L drums and is equipped with threaded base connections to match common drum fittings. Always check the spout and base sizes listed in the specifications against your drum openings before use.
How much liquid is dispensed with each lever movement?
The flow rate per movement depends on the version selected. The corrosive and chemical liquids pump delivers approximately 0.65 litres per stroke, while the non-corrosive liquids and oils pump delivers approximately 0.3 litres per stroke, allowing you to choose the control level that best suits your task.
