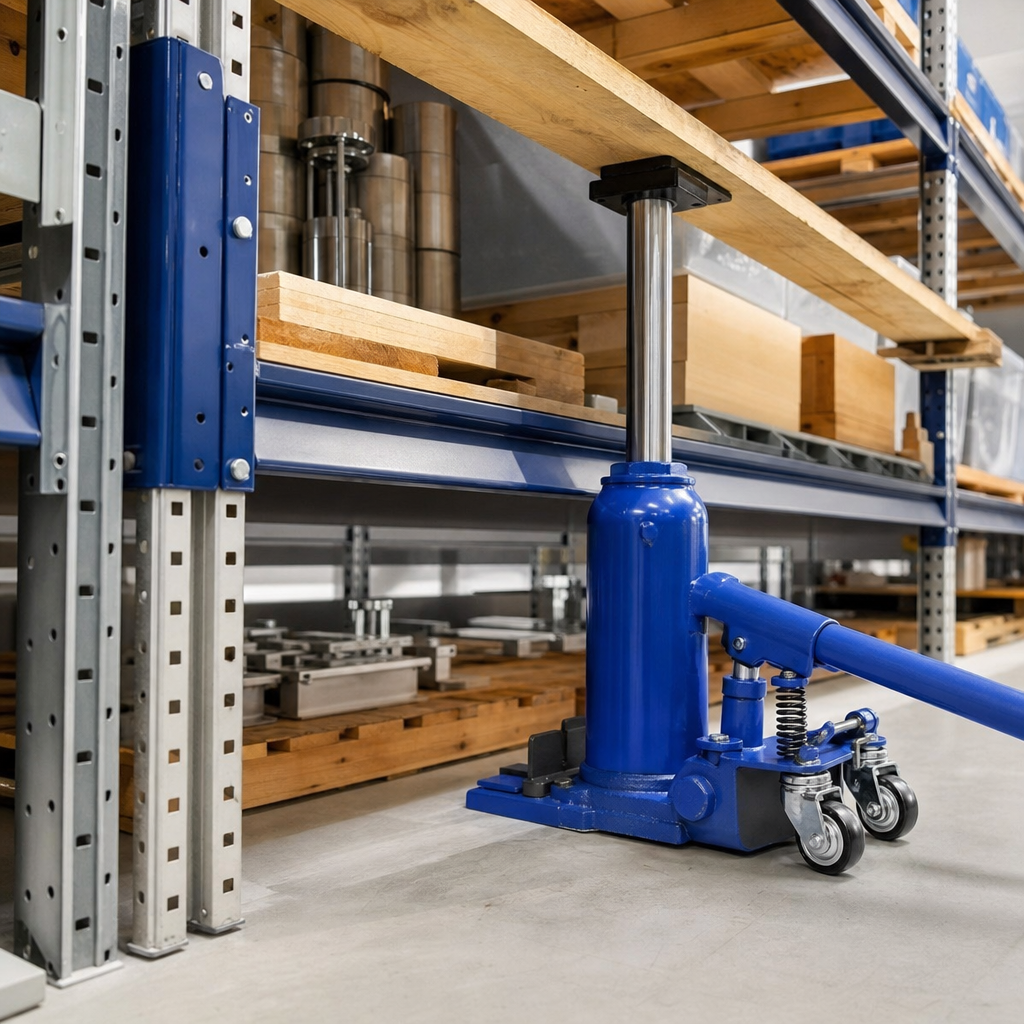

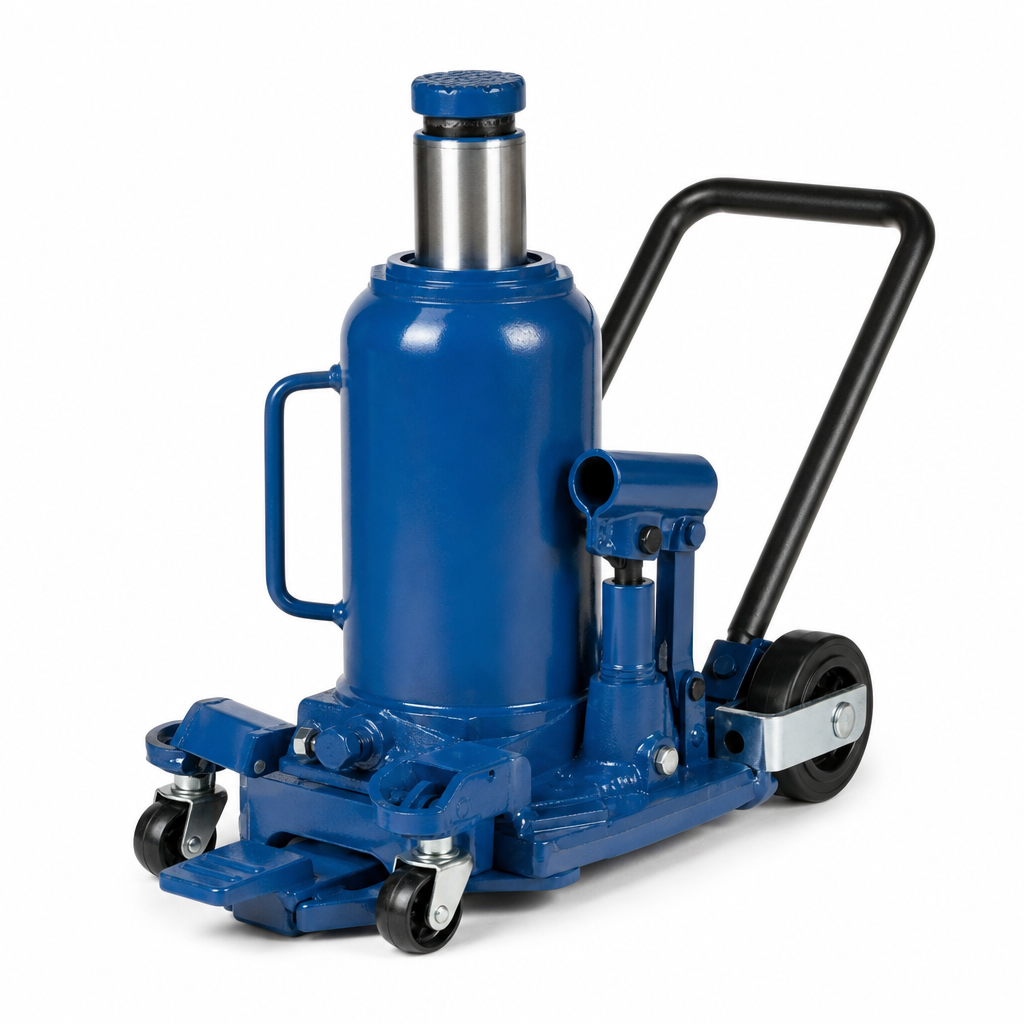

This heavy-duty hydraulic bottle jack is designed for safe, controlled lifting of heavy machinery and equipment in workshops, warehouses and maintenance areas.
With a swivelling toe, integrated castors and a choice of 5, 10 or 25 tonne load capacities, it offers versatile lifting options while remaining easy to position under low-clearance loads.
Product Features
- Choice of 5 t, 10 t or 25 t load capacities to suit different lifting tasks
- Swivelling toe design for engaging loads at various angles and low pick-up points
- Hydraulic lifting mechanism for smooth, controlled raising of heavy items
- Integrated castors for easier manoeuvring and positioning of the jack
- Compact overall dimensions for use in confined or low-access areas
- Generous lift height travel to provide ample working clearance once raised
Key Specifications
| Load capacity options | 5 t / 10 t / 25 t |
|---|---|
| Overall width (5 t) | 132 mm |
| Overall width (10 t) | 170 mm |
| Overall width (25 t) | 300 mm |
| Lift height travel (5 t) | 205 mm |
| Lift height travel (10 t) | 230 mm |
| Lift height travel (25 t) | 215 mm |
| Toe minimum height (5 t) | 25 mm |
| Toe minimum height (10 t) | 30 mm |
| Toe minimum height (25 t) | 60 mm |
| Overall length (5 t) | 300 mm |
| Overall length (10 t) | 300 mm |
| Overall length (25 t) | 430 mm |
| Maximum height (5 t) | 230 mm |
| Maximum height (10 t) | 260 mm |
| Maximum height (25 t) | 273 mm |
Applications
- Lifting and positioning heavy machinery in workshops and factories
- Maintenance, repair and installation tasks requiring precise vertical lifting
- Use in warehouses for handling heavy plant and equipment
- Engineering and industrial environments where compact lifting gear is required
- Situations requiring low toe height access under loads
Frequently Asked Questions
Which capacity of hydraulic bottle jack should I choose?
Select a jack with a load capacity that exceeds the maximum weight you need to lift. Options include 5 t, 10 t and 25 t models, allowing you to match the jack to lighter or heavier industrial lifting tasks.
What is the benefit of a swivelling toe on this jack?
The swivelling toe allows the jack to engage loads at different angles and reach under low-clearance points. This makes it easier to position under machinery or equipment where direct vertical access is restricted.
Are the castors suitable for moving the jack under load?
The castors are primarily intended to help you manoeuvre and position the jack before lifting. Always follow safe working practices and ensure the jack is stable and correctly positioned before applying any load.
