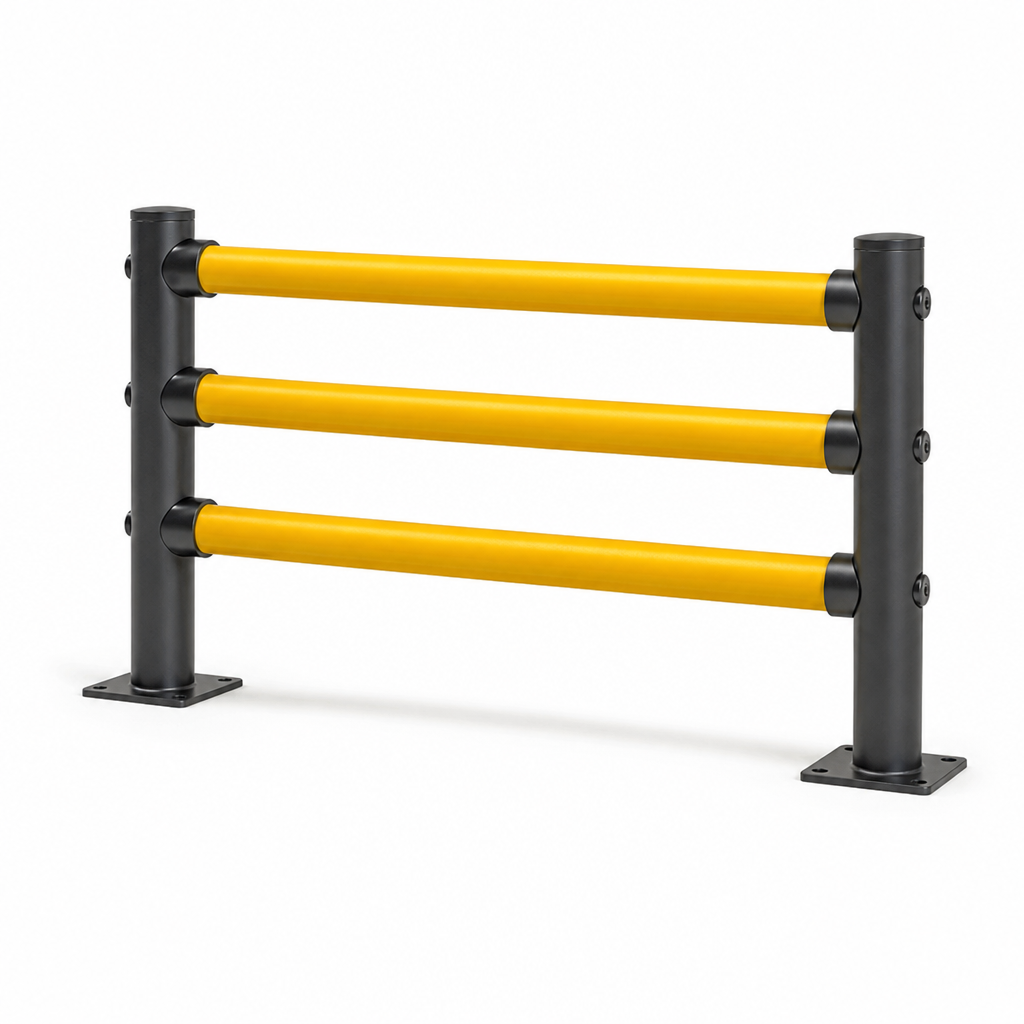

Protect vulnerable areas, walkways and assets with this outdoor medium duty impact protection rail system. Designed for external use, it helps create visible, defined safety barriers around loading bays, car parks and building perimeters.
The modular design allows you to combine posts and rails to build straight runs, corners and terminations to suit your site layout. Finished with round tube sections for improved impact resistance and a professional appearance.
Product Features
- Medium duty impact protection suitable for outdoor environments
- Modular posts and rails to create straight runs, ends and corners

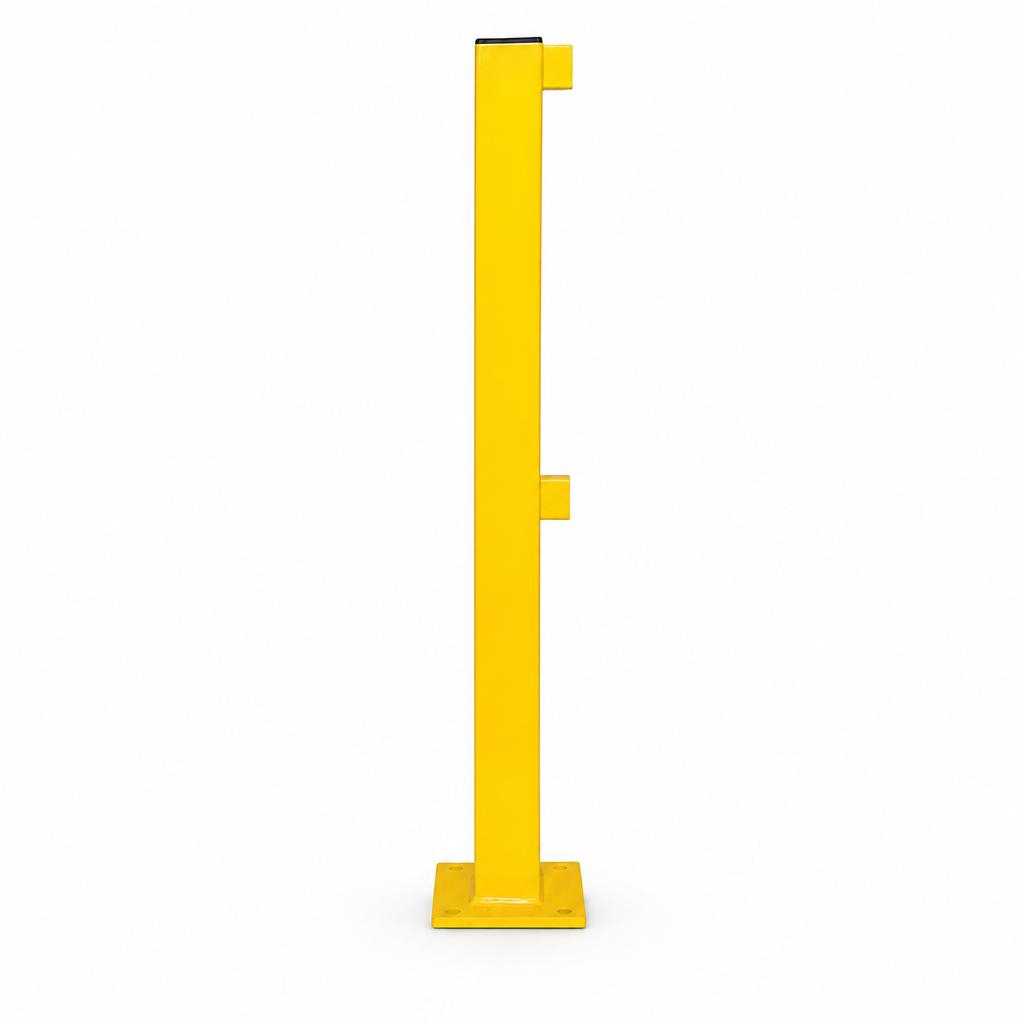

- End, middle and corner posts with matching overall height for continuity
- Choice of rail lengths to suit different spans and layouts
- Round tube construction for strength and smoother impact deflection
- Ideal for segregating pedestrians, vehicles and protected areas
Key Specifications
| Component type | Overall height | Overall length | Tube diameter |
|---|---|---|---|
| Outdoor end post | 1000 mm | 70 mm | 70 mm |
| Outdoor middle post | 1000 mm | 70 mm | 70 mm |
| Outdoor corner post | 1000 mm | 70 mm | 70 mm |
| Outdoor rail, 1.0 m span | 60 mm | 1000 mm | 40 mm |
| Outdoor rail, 1.2 m span | 60 mm | 1200 mm | 40 mm |
| Outdoor rail, 1.5 m span | 60 mm | 1500 mm | 40 mm |
| Price range (per component) | £244.80 - £425.40 (depending on option selected) | ||
Applications

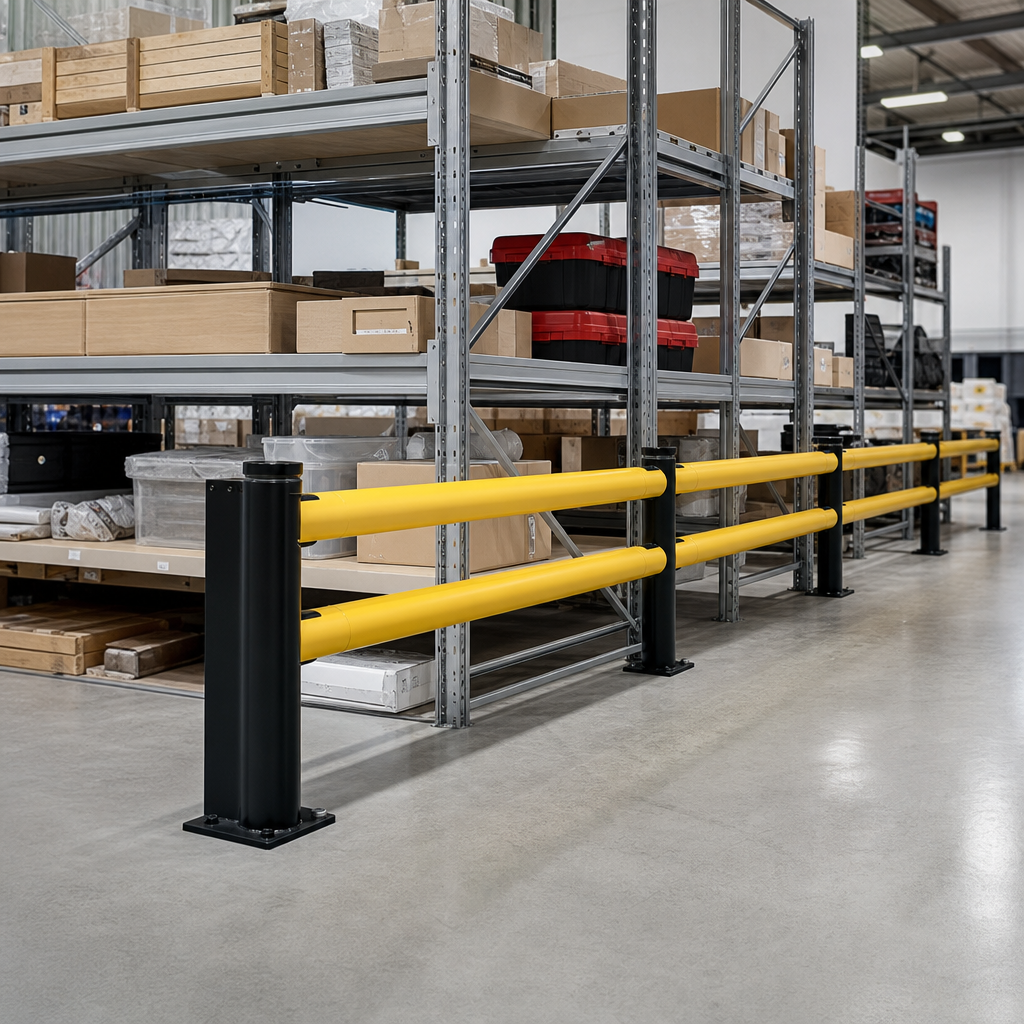

- Defining pedestrian walkways around warehouses and loading bays

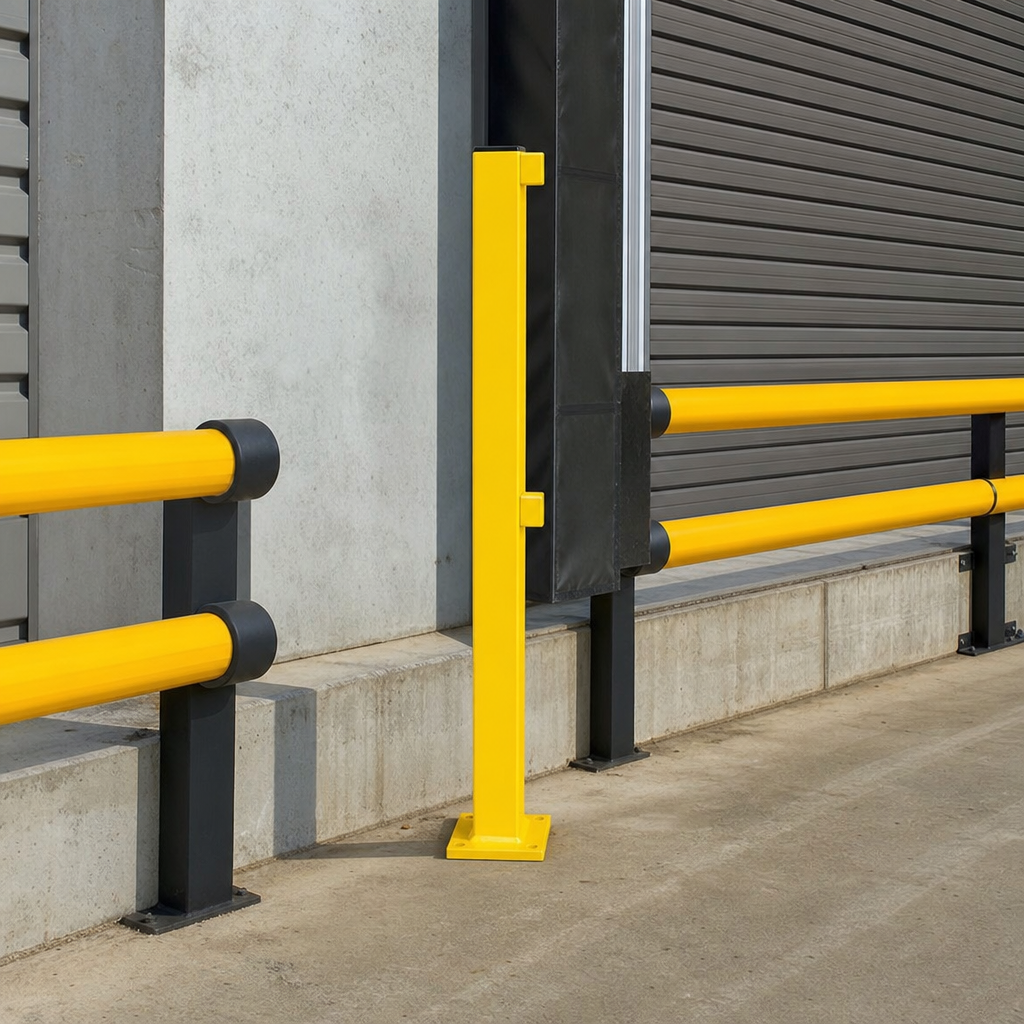

- Protecting building edges, doorways and roller shutter surrounds
- Separating vehicle routes from working or storage areas
- Creating safe zones around machinery, equipment or plant
- Perimeter protection in car parks and service yards
Frequently Asked Questions
Can I mix different post and rail components in the same run?
Yes, the system is designed to be modular, allowing you to combine end, middle and corner posts with different rail lengths so you can create layouts that match your site and required protection zones.
What overall height does the installed barrier provide?
The posts provide an overall height of 1000 mm, giving a clear and consistent barrier height along the length of the installation when used with the matching outdoor rails.
Which rail length should I choose for my installation?
Choose from 1.0 m, 1.2 m or 1.5 m outdoor rails depending on the span you need between posts and the layout of your site. Shorter rails can help follow tighter layouts, while longer rails reduce the number of posts required over longer straight runs.
