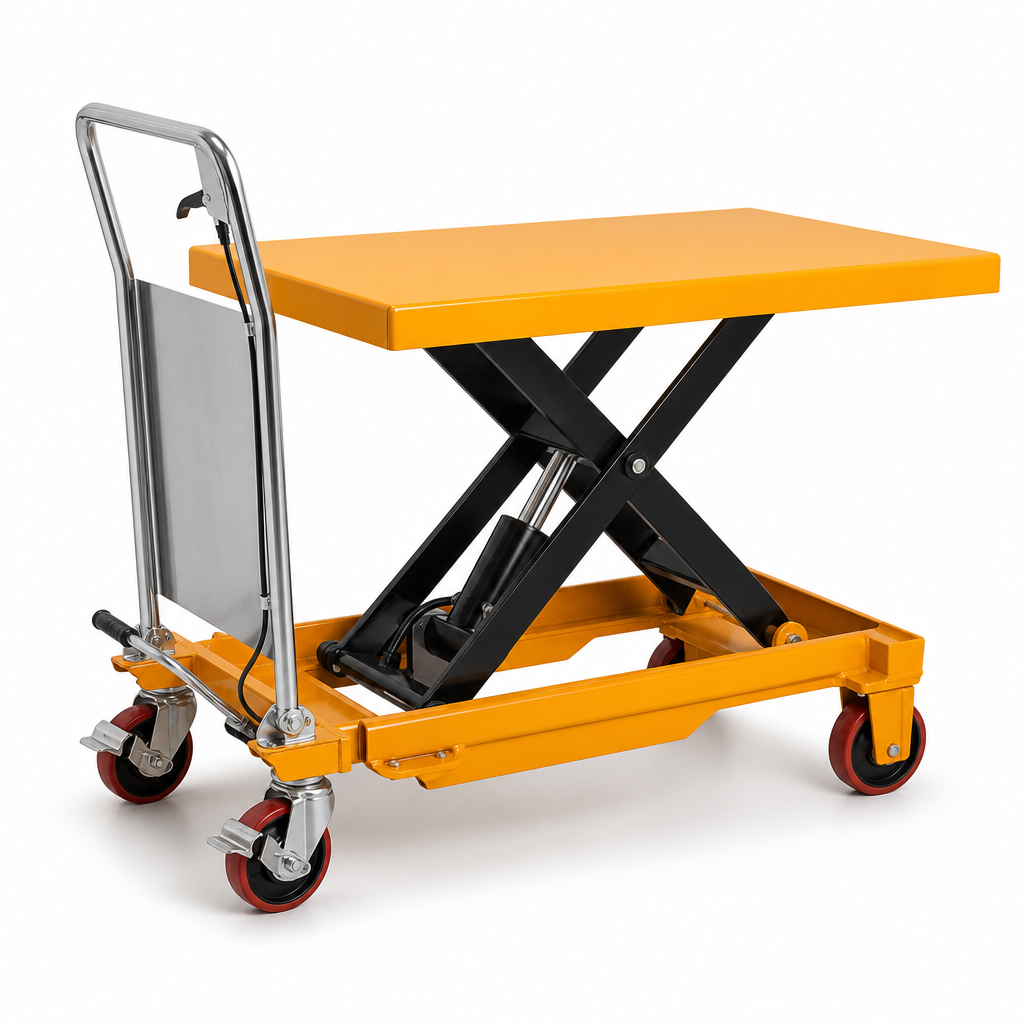

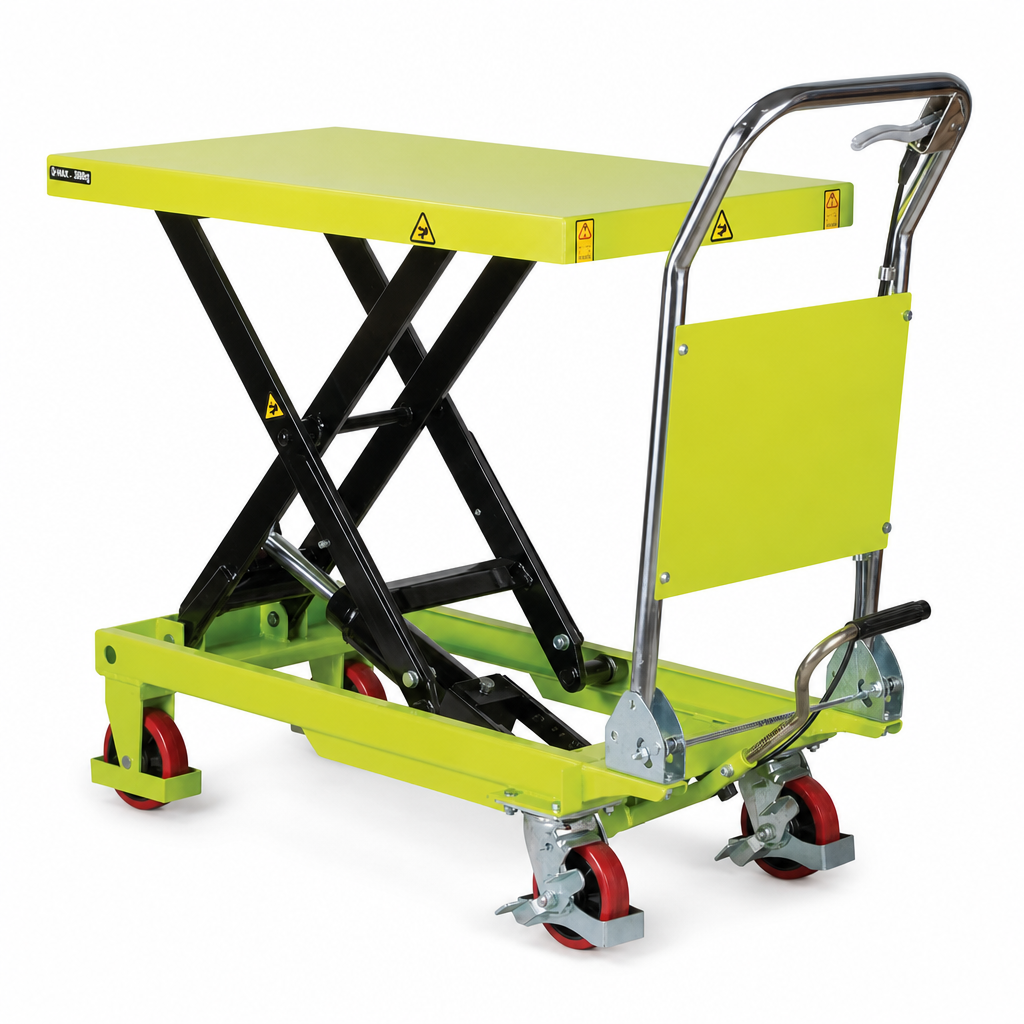

This heavy-duty single scissor lift table trolley is designed for safe, ergonomic lifting and positioning of loads up to 800kg. Ideal for workshops, warehouses and loading areas, it helps reduce manual handling risks and improve efficiency.
The hydraulic foot pump mechanism allows controlled, smooth lifting to a maximum platform height of 1000mm, while the robust construction and quality castors ensure stability and easy manoeuvring under load.
Product Features
- Single scissor hydraulic lift table for lifting and positioning heavy loads
- 800kg load capacity for demanding industrial applications
- Foot-operated hydraulic pump for smooth and controlled lifting
- Maximum platform height of 1000mm with 585mm lift height travel
- Comfortable handle height of 990mm for easy steering and control
- Durable 150mm diameter wheels for stable movement under load
- Compact 510mm wide platform suited to tight spaces and narrow aisles
Key Specifications
| Load capacity | 800kg |
|---|---|
| Platform width | 510mm |
| Platform length | 1016mm |
| Platform minimum height | 415mm |
| Platform maximum height | 1000mm |
| Lift height travel | 585mm |
| Number of pump strokes to maximum height | 53 compressions |
| Handle height | 990mm |
| Wheel diameter | 150mm |
Applications
- Loading and unloading pallets, crates and heavy components
- Positioning workpieces at a comfortable height for assembly or repair
- Material transfer between production, packing and storage areas
- Order picking and handling heavy items in warehouses
- General lifting support in workshops, factories and maintenance facilities
Frequently Asked Questions
What is the maximum safe working load of this lift table?
The maximum safe working load is 800kg. Loads should never exceed this capacity, and weight should be distributed evenly across the platform.
What is the minimum and maximum platform height?
The platform can be lowered to a minimum height of 415mm and raised to a maximum height of 1000mm, providing a lift height travel of 585mm.
How is the platform raised and lowered?
The platform is raised using a foot-operated hydraulic pump, requiring approximately 53 compressions to reach maximum height. Lowering is controlled via the release mechanism, allowing the platform to descend smoothly and safely.
